1" Scale Arch Bar Trucks

    4 3/4" and 5" Gauge		 Arch Bar Trucks
Elevation View
Elevation View
Exploded View
Exploded View

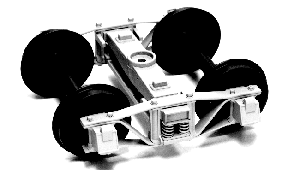

Our Arch Bar trucks faithfully reproduce in 1" scale one of the earliest truck designs fabricated entirely of iron and steel. This type of truck was common in the late 19th century and could still be found much later on branch line railroads. The kit comes with separate center columns, journal boxes, and pre-formed arch bars along with all the other necessary components to make a pair of fine scale replicas of this widely popular truck. The wheelsets have rib-back wheels following prototype practice. All 180 holes have been cored or drilled, and only require tapping for completion. The kit comes with all spring and fasteners needed for assembly and mounting to your car's body bolster.

We regret that we do not currently offer brake gear for 5" gauge trucks

Catalog No. Description
4100 1" Scale 4 3/4" Gauge Arch Bar Trucks (1 Pair)
7100 Brake Gear for 4 3/4" Gauge Arch Bar Trucks (1 Pair)
5100 1" Scale 5" Gauge Arch Bar Trucks (1 Pair)
